How to connect to Eduroam wireless internet for students and employees (Mac OS X)

Innholdsfortegnelse [-]

Norsk versjon - Koble til trådløstnett med Mac

Topic page about IT-services | Pages tagged with wireless

Watch instructional video eduroam for Mac

Automatic setup

NTNU has a program that will automatically set up Eduroam for you. This program works for Windows 7, Windows XP, Ubuntu Linux, Mac OS X and iPhone. The program will know which operating system you are using. If the program fails please follow the steps below to connect to Eduroam.

Manual connect for Mac OS X

Step 1:

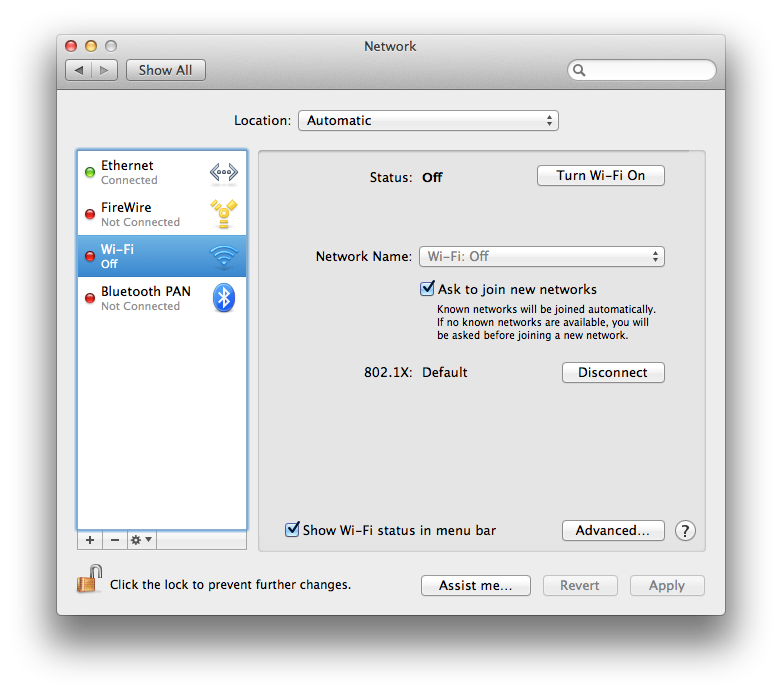

To connect to the wireless internet at NTNU you need to either be on campus or some areas in town so your machine can find the network called Eduroam. Click on the wireless symbol in the top right corner. If Wi-Fi is turned off, turn it on in the same menu. Choose Eduroam from the list.

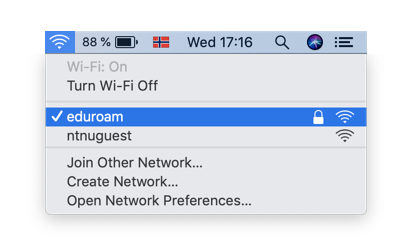

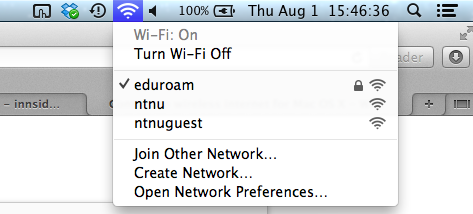

Click on the wifi-symbol and then select Eduroam

Step 2:

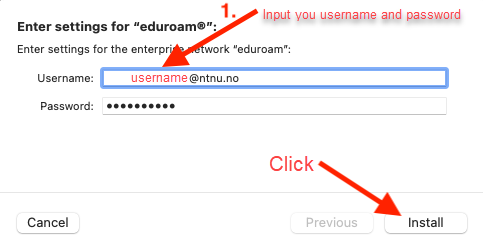

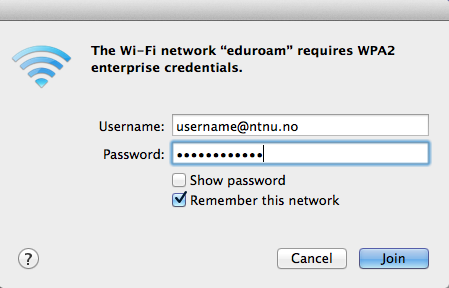

A window will appear asking for your username and password. Enter this information:

Username: Enter your NTNU-username in this format: username@ntnu.no
Password: The password you normally use with your account

Enter ntnu username and password, remember @ntnu.no behind the username

Step 3:

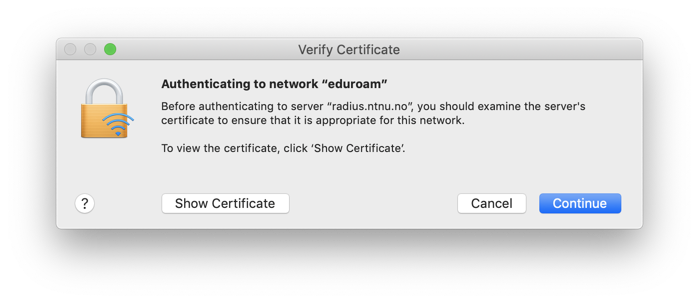

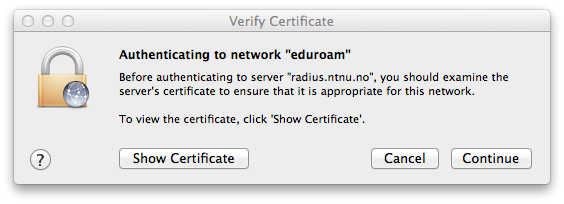

Now a window will appear asking for certification authentication, click Show Certificate.

Click Show certificate on the "Verify Cretificate"-popup

Step 4:

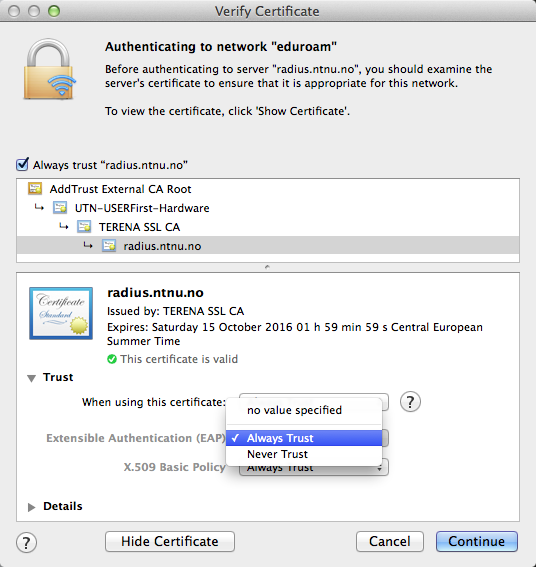

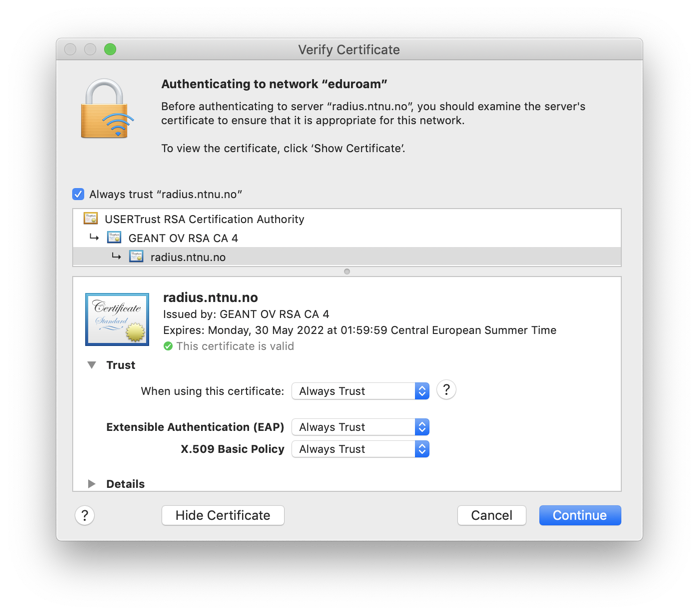

Under Trust choose Always Trust. Click Continue.

Check the "Always trust ""radius.ntnu.no" checkbox

Step 5:

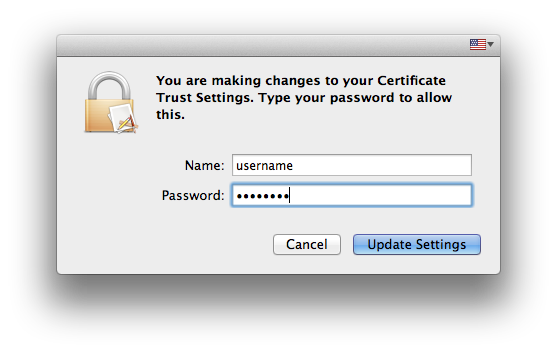

Your computer will now ask you for a username and password. This is the username and password you use locally on your computer (the one you use when installing a program).

Enter your Mac username and password in the final popup

If everything was done correctly and no errors occurred, you should now be connected to Eduroam.

Known Issues

After change of security certificate on the wireless network, it can be difficult to connect again. This is how to solve the issue:

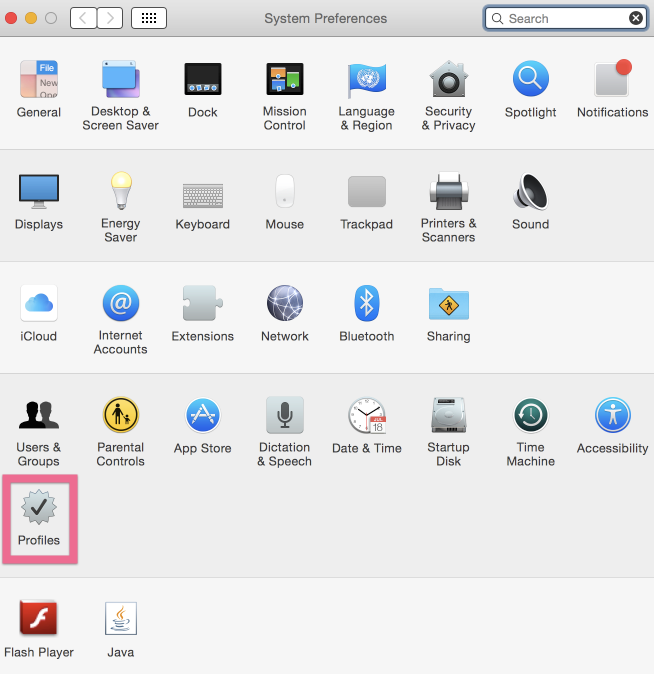

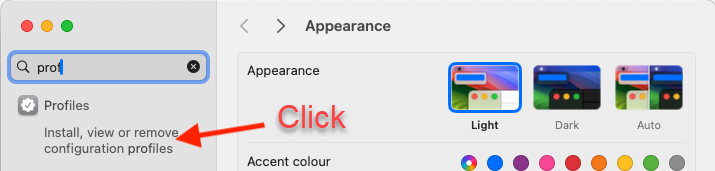

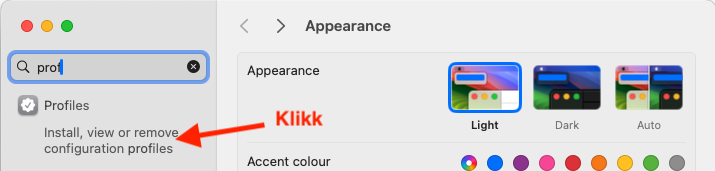

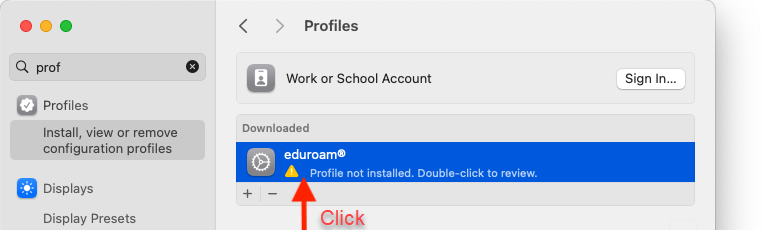

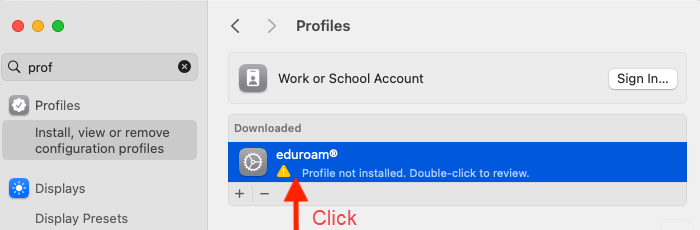

Verify that no profiles named Eduroam exist under Profiles in System Preferences::

- If "Profiles" is not visible, there are no installed profiles and thereby no Eduroam-profile. Proceed to the next step.

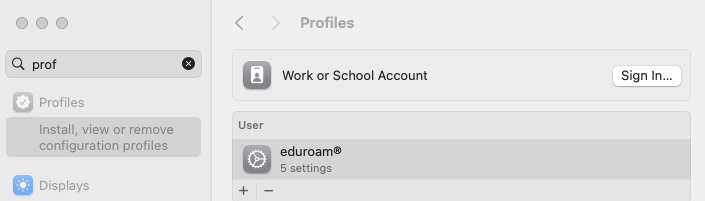

- If "Profiles" is visible, there are installed profiles. Open them and see if you can locate a profile named "eduroam". Select it and press the remove-button below it. Verify the removal with your Mac password.
Open Keychain Access. Search and delete all entrances for:
- radius.ntnu.no
- eduroam
Deactivate/reactivate WiFi. Click the wireless icon in the top menu and choose Turn Wifi Off. Do the same again but choose Turn Wifi On.
Connect to eduroam again and log in with username@ntnu.no and your password.
